PVDF Coating Aluminium Composite Panel

VICOBOND is ISO9001:2000 quality system management certified manufacturer of high quality aluminium composite panel,aluminium cladding sheet in China. We import 20 advanced multi-functional fully automatic controlled equipments with highest Germany technology,including coating line,compositing line,aluminium sheet production line ect.

Keyword:

Aluminium Composite Panel | Building Cladding Facade | Signage & Display

Category:

Building Cladding Facade

Consult Back

Aluminum plastic composite board (also known as aluminum plastic board), as a new type of decorative material, was introduced from Germany to China in the late 1980s and early 1990s. With its economy, diversity of colors available, convenient construction methods, excellent processing performance, excellent fire resistance, and noble quality, it has quickly gained people's favor. The unique performance of aluminum plastic composite panels determines their widespread use: they can be used for building exterior walls, curtain wall panels, renovation of old buildings, interior wall and ceiling decoration, advertising signs, display stands, and purification and dust prevention engineering. It belongs to a new type of building decoration material.

Vicobond PVDF coating aluminium composite panel is made of a mixture of fluorocarbon resin with fluorine enyne as the basic monomer, paint, alcohol ester solvent and accessory ingredients. The molecular structure in the coating becomes compact after being high baked to create a film,which has extra strong weather resistance,to create an extra weather resistant film.

Conventional fluorocarbon is made of KYNAR500 fluorocarbon and is solidified to create the film on the surface after three coats and three bakes. It is acid and alkali resistant, standing the test of severe environment,and has no abnormal depigmentation for 15 years. It is more suitable for exterior decoration of architectures and curtain wall decoration of major constructional projects that have high demand for weather resistance.

Product Specification

Panel thickness: 3mm-6mm, recommend 4mm

Panel width: 1000mm-2000mm, recommend 1220mm, 1250mm, 1500mm,1550mm

Panel length: any size, recommend 2440mm, 3050mm, 4050mm

Aluminum skin thickness: 0.21mm-0.50mm

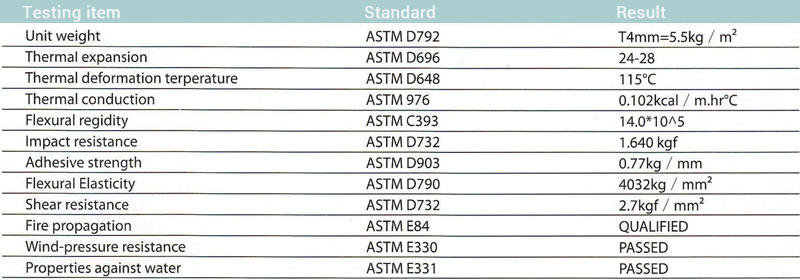

VICOBOND Architecture Panel Physical Parameter

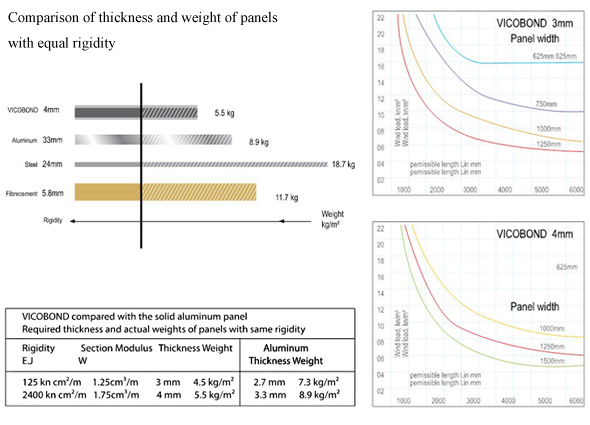

Wind load and permissible panel sizes

The graphs for 3mm and 4mmthick VICOBOND indicate the maximum permissible panel length (without having to add a stiffener) based on applicable design wind load and panel width．

Note：

Permissible stress=53N／mm² (includes safety)

Values apply to 4-side supported panels Values for other systems on request
