Chameleon Coating Aluminium Composite Panel

VICOBOND is ISO9001:2000 quality system management certified manufacturer of high quality aluminium composite panel,aluminium cladding sheet in China. We import 20 advanced multi-functional fully automatic controlled equipments with highest Germany technology,including coating line,compositing line,aluminium sheet production line ect.

Keyword:

Aluminium Composite Panel | Building Cladding Facade | Signage & Display

Category:

Building Cladding Facade

Consult Back

Aluminum plastic composite board (also known as aluminum plastic board), as a new type of decorative material, was introduced from Germany to China in the late 1980s and early 1990s. With its economy, diversity of colors available, convenient construction methods, excellent processing performance, excellent fire resistance, and noble quality, it has quickly gained people's favor. The unique performance of aluminum plastic composite panels determines their widespread use: they can be used for building exterior walls, curtain wall panels, renovation of old buildings, interior wall and ceiling decoration, advertising signs, display stands, and purification and dust prevention engineering. It belongs to a new type of building decoration material.

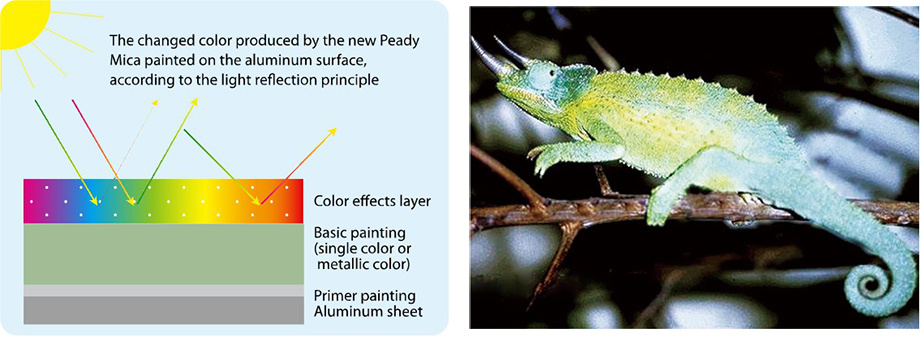

Chameleon inspirited by themes from nature such as iridescent colors. The surface coated with a special high gloss painting, bring us a smooth and colorful feeling. Interaction between light and material, reflection, diffraction and absorption are the secrets of color effects in nature.

Chameleon shows fantasy decorative effects, especially used in public places for interior and exterior decoration, commercial chains, car 4s shop, exhibition advertising and so on.

Raw Materials

Basic aluminum: high-strength aluminum alloy sheet

Plastic Core: non-toxic low density polythene

Surface coating: Spectra PVDF triple coating

Adhesive film: American Dupont high Polymer film

Product Specification

Panel thickness: 3mm-6mm, recommend 4mm

Panel width: 1000mm-2000mm, recommend 1220mm, 1250mm, 1500mm

Panel length: any size, recommend 2440mm, 3050mm, 4050mm

Aluminum skin thickness: 0.30mm-0.50mm

Product Features

1. Optical：

Accord with the optical elements, the Chameleon use the light's reflection, diffraction, refraction and absorption. These color effects have fascinated motivated, triggered emotions and had an effect on men's feeling since time immemorial.

2. Traditional Technics：

VICOBOND aluminum composite panel is composed of non-toxic and low density polyethylene core between two sheets of aluminum, with the technology of continuous compositing. The adhesive film keep the color well.

3. Coating Performance：

VICOBOND aluminum plastic composite panel is coated with fluorocarbon resin (PVDF) on the surface (Pearlescent mica PVDF>70%). The color has two main systems, Metal color and no-metal color. As for indoor aluminum plastic composite panel, PE coating is up to the usage requirement.

4. Color Arrangement：

Chameleon are based on the same principle as natural color effects. Pigmentation effects add new dimensions to Chameleon with their luster, depth and color gradient.

5. Sensory Theme：

Depending on the type of pigment and viewpoint, different, enchanting color effects with highlights and iridescent color gradients appear.

6. Design Exertion：

The Chameleon has series of glossy and shape to meet the designer great originality of design, achieves perfect results.

Test Report

Coating	Requirement	Composite Panel	Requirement
Coating rididity	≥2H	Length Deviation	≤2mm
Adhesive Force	Cross-Cut Method Level 0	Width Deviation	≤1mm
Coating Flexibility	≤2T	Thickness Deviation	≤0.1mm
Durability	≥5L/μm	Diagonal Deviation	≤3mm
Boiling Water Resistance	No change after 2 hours	Edge Nonstraightness	≤1mm/m
Alkali Resistance	No change	Angularity	≤5mm/m
Acid Resistance	No change	Areal Density	2.88kg/m2
Solvent Resistance	No change	Bending Strength	≥60Mpa
Washing Resistance	No change after 10000 times	Flexural Modulus	≥15000Mpa
		Through Resistance	≥5KN
		Shear Strength	≥20Mpa
		180 Peeling Strength	≥5N/mm
		Thermal Shock Resistance	No Change

Keywords: Chameleon Coating Aluminium Composite Panel
